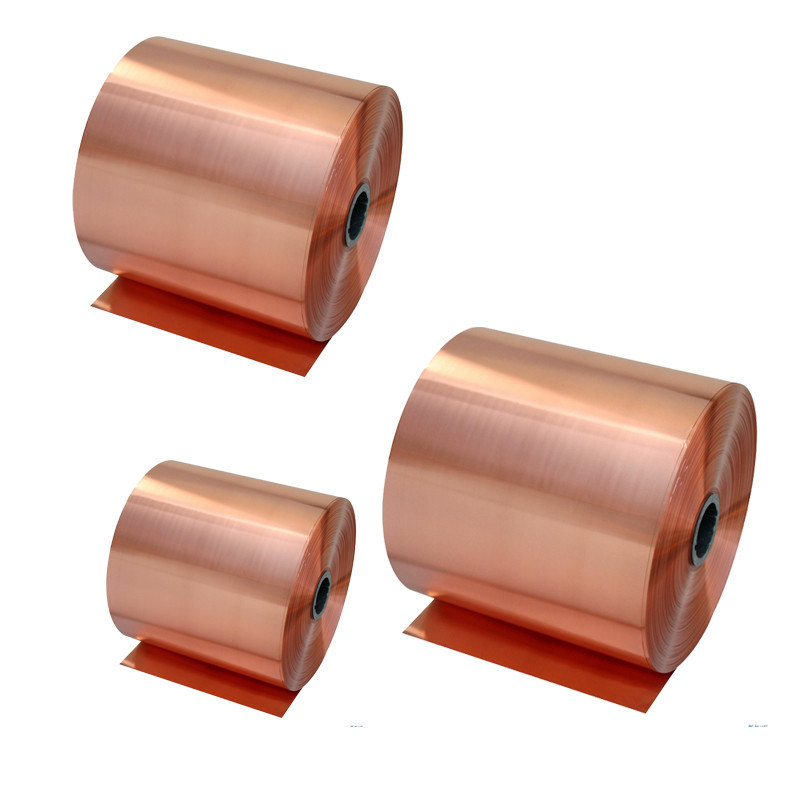

105 মিম সিঙ্গল চকচকে ভারী ইডি পিসিবি কপার ফয়েল

Single Side Red Thickness 12um Copper Foil Rolls Quickly details . Low profile and Single side side treatment in red. . Thickness: 12um . Width: ≤520 mm . Length: ≤5000 M . ID: 76 mm,152 mm . Alloy: C11000 Features: 1. Red color 2. Good performance in resistant to bending suitable for FCCL. 3. High density performance leads to high flexibility Application: Suitable for FCCL, FPC, COVERLAY, BONDING FILM TDS for FPC FCCL with all thickness. Thickness 0.10/0.012/0.018/0.025/0

C1100 C1020 C1220 Transformer Strip Thin Copper Foil Product Details 1. Grade:C1100,C1020,C1220 2. Thickness:0.005-1.2mm 3. Width:400mm max 4. Chemincal composition: C1100:Cu≥99.9%;C1020:Cu≥99.96%;C1220:Cu≥99.97% P:0.015-0.04% 5. Oxgen content:C1100:O80% Applications 1. Electric and electric springs switches 2. Lead frames 3. Connectors and oscillation reeds 4. PCB field 5. Communication cable 6. Cable armoring 7. Mobile phone main board 8. Ion battery production lamination

99.9% Purity Red Rolled Electrodeposited Copper Foil Description: Electrolytic copper foil is a foil-based form of copper with a thickness generally less than 80micron. A rolled foil is made by annealing and rolling the electrolytic copper uninterruptedly.The production process involves electrodepositing copper to a rolling drum and then again rolling it up. For the process of electrodeposition, high-grade copper is dissolved in acid to form a copper electrolyte. This copper

High Peel Strength Width 520mm C11000 Insulated Copper Foil Quickly details Thickness: 0.012-0.070 mm Width: 5-520 mm Length: 500-5000 M ID: 76 mm,152 mm Alloy: T2,C11000,C1100,C101,E-Cu58 Temper: H Features: 1. the treated foil in gray or red 2. High peel strength 3. Good etch ability 4. Excellent adhesion to etching resist Application: 1. Phenolic resin board 2. Epoxy board Compare between CA copper foil and ED copper foil 1. Process: rolled copper foil (Rolling process),ED
